Respectful relighting for exceptional architecture

At Herz Jesu Church in Munich, ERCO LED lighting has replaced a high-end halogen installation originally supplied by ERCO when the church opened in 2000.

There are some buildings whose lasting significance is evident from the moment they are built. Herz Jesu Church in Munich is one of them. When the church opened, the contemporary sacred building caused a sensation and catapulted Munich architectural practice Allmann Sattler Wappner onto the international stage. The original lighting, supplied by ERCO, played a central role in shaping the building’s spatial and spiritual character.

For the original lighting design, the parish enlisted George Sexton – a luminary in the field – whose US background would later prove significant. Working with ERCO’s sophisticated halogen lighting technology, Sexton developed a scheme that treated light as an architectural material in its own right.

As ERCO’s magazine Lichtbericht 66 put it at the time: “Light is the classic architectural metaphor for spirituality; its modulation serves as a leitmotif for the building.” That statement is as apt today as it was 26 years ago.

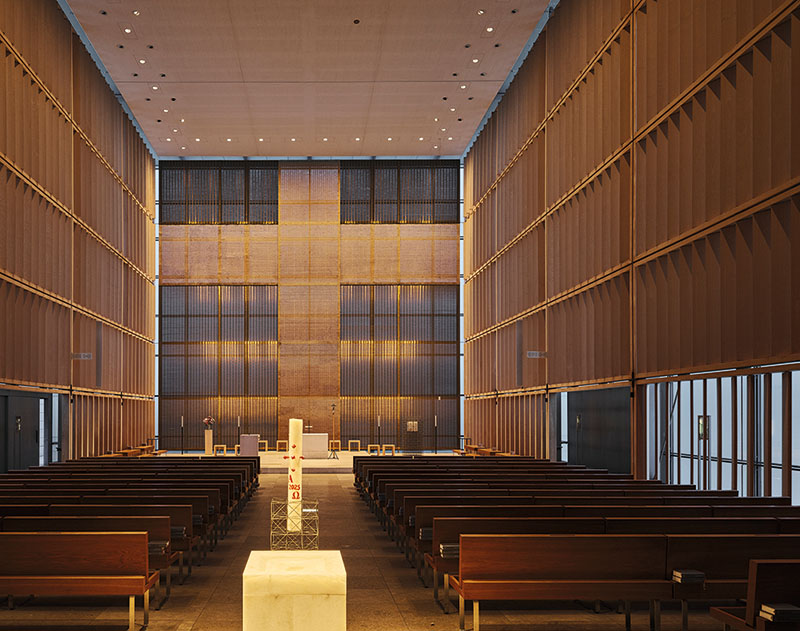

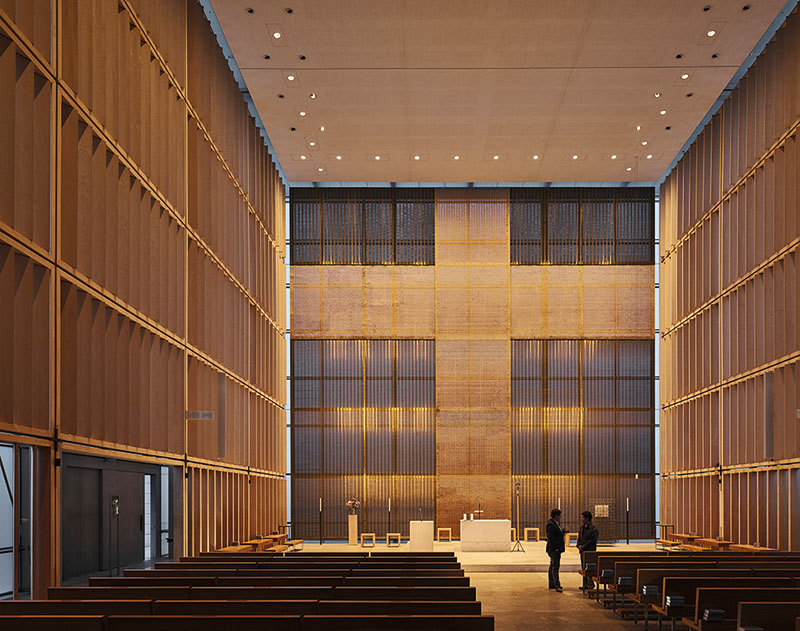

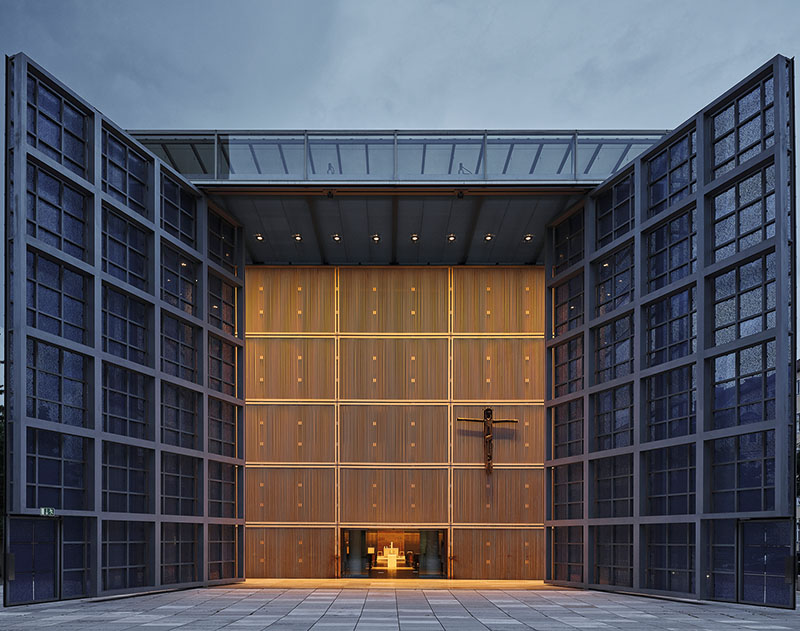

Two layers filter the daylight in different ways: the glass façade, with a gradient of frosting, shifts the interior light from clear to diffuse, while the timber louvres open towards the altar so that brightness increases as one progresses through the church. By night, the artificial lighting reverses these effects, transforming the church into a shimmering ‘rock crystal’, as the architects described it.

Timeless lighting concept – obsolete lamps

Sexton worked with the high-end tools of his time: lens wallwashers for the uniform illumination of vertical surfaces and recessed spotlights with deep cut-off for general illumination of horizontal planes and for accents on areas such as the choir and altar. True to his exacting standards, he specified lamps that produced beautifully warm, velvety and perfectly dimmable light.

However, as lighting designer Professor Michael Schmidt, who oversaw and coordinated the recent refurbishment, explained: “Sexton used US 120V halogen reflector lamps back then, which did give us a few headaches.” The now-obsolete lamps consumed a great deal of energy, wore out quickly and required frequent replacement – they are no longer available.

Relighting with contemporary LED technology was therefore inevitable, a step that promised substantial long-term reductions in energy and maintenance costs. At the same time, the lighting’s integral role in both architecture and liturgy ruled out any fundamental reinterpretation. Preserving Sexton’s original lighting concept through a like-for-like replacement of the luminaires was the only viable approach.

Who better to undertake this task than the supplier of the original lighting? On that basis, ERCO was invited to demonstrate the capabilities of modern LED luminaires in an on-site mock-up. The new lighting scheme now saves up to 90% energy, allows seamless dimming down to 0.1% and ensures flicker-free operation.

“We managed to meet the demanding brief with just four luminaire types from our standard range,” reported Mariusz Furtak, Regional Manager of ERCO’s Munich branch. Atrium LED lens wallwashers and Quinta directional spotlights with three light distributions achieved an effect at 2,700 K that closely matched the original – at only 10-15% of the connected load. They also fitted the existing recesses with virtually no alteration.

Like-for-like LED replacement saves up to 90% energy

With the performance proven, the decision in favour of ERCO was clear. The next hurdle concerned control and cabling. “Separate dimmer cabinets for the 120V lamps were installed in the church’s equipment room for the various circuits,” said Schmidt. It also had to be clarified whether the original cabling – with its unusually large conductor cross-sections due to the high loads – could continue to be used. As the church’s lofty ceiling and construction made retrofitting additional control lines impractical, the new system had to be wireless. ERCO proposed a Casambi Bluetooth solution that operates smoothly with around 200 nodes.

After successful installation, the electricians first recreated the original lighting scenes designed by George Sexton. The user-friendly Casambi app also allows authorised users to adjust scenes themselves as needed.

Additional scenes can be created and targeted accents set by addressing individual luminaires or freely defined groups – for example, highlighting the font or the organ. The system is operated via a tablet stationed in the church and via the app on authorised smartphones. A single tap is enough to adapt the lighting to natural conditions that change with the time of day and weather, as well as for different situations and occasions.

Wireless control for more convenience and flexibility

In operation, the ERCO LED luminaires impress with their homogeneous illumination and special capabilities such as seamless dimming down to 0.1% and flicker-free performance suitable for television – important because services are regularly broadcast. “The laborious maintenance with the cherry picker and the hunt for replacement lamps are now a thing of the past. And by consuming less electricity, we are doing our part to protect the environment,” said Dr Konstantin Bischoff, pastoral advisor and head of the parish. “The lighting effect is almost more beautiful than before, and the control for our diverse uses is certainly better and more flexible,” he added.

With this thoroughly successful lighting refurbishment, Herz Jesu Church follows the example of historic churches that have been continually cared for by their builders – achieving timelessness through steady, organic renewal.
