Votive Candelabra at Weybourne Church, North Norfolk

The candelabra stand at Weybourne Church is located in the north aisle, originally the Saxon nave, which is one of the oldest parts of the priory church still in use. The votive stand was commissioned in 2013 by Maggie Broad, in memory of her husband Peter and with the approval of the Parochial Church Council and the Chancellor of the Diocese.

0n8758Brian Turner of Turners Ornamental Leadwork was approached by Tuecer Wilson, who was the designer, and is one of the country's leading stone carvers. Brian takes up the story: "My brief was to make a steel globe, two meters in diameter, incorporating the art of Peter Broad, a successful professional architect and a keen artist, using one of Peter's paintings of water lilies to incorporate it into the globe.

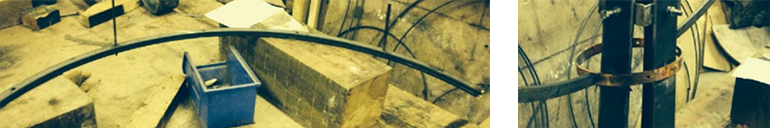

0n8757"This globe was a challenge as I wanted to make it with the minimum of welding. I started with rolled flat steel and round bar shaped to the diameter required. Then the central column with the help of Ian Ridgeways, the local blacksmiths, helping to make the scrolls in his forge on the central steel column.

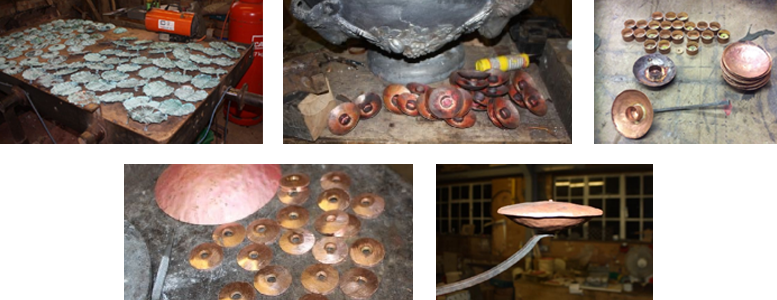

"The next job was to make all the copper candle holders and the other copper parts I planned to make, banishing them to shape in a previously made wooden block taken from a nearby woodpile.

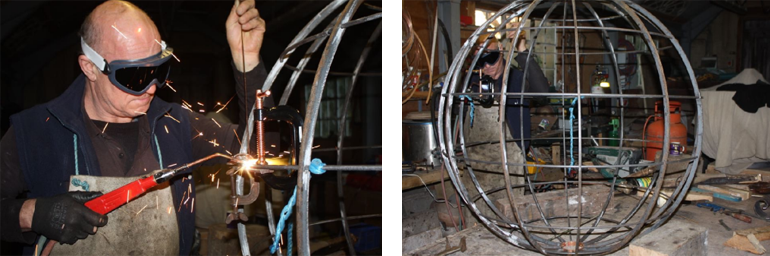

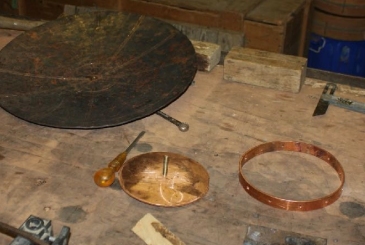

"Then from some aged 1/8” (3mm) thick copper plate I made some other copper components, then gradually prepared the other part and drilled out the rolled flat bar ready to fit the rolled round bar. These were then fitted with copper pipe in each section then fitted to a copper ring one top and one at the bottom, slowly building the globe, threading the rolled round bar through the flat bar, this was a challenging fun part trying to keep everything together. Once all the round bar was fitted and all equally spaced the round bar was welded together.

0n8751

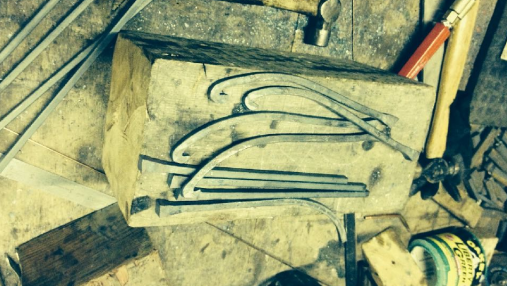

"Now I had to make the brackets to support the copper candle holders to make by heating and swaging the steel to the shape and thickness needed at the ends of the brackets which would allow drilling and tapping. Once they were all made, I made the copper cap to go on to the top and rivet to the rolled flat bar.

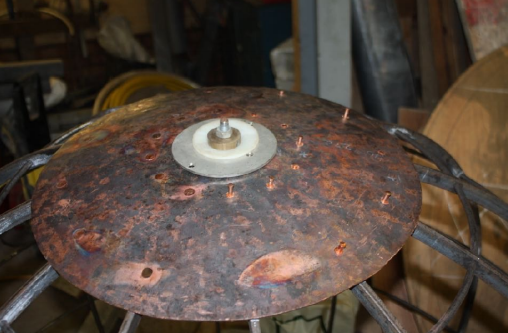

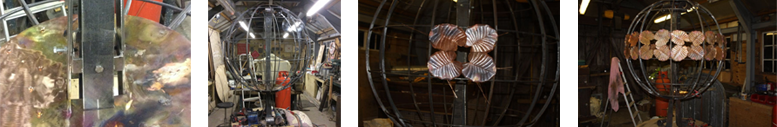

"This done the globe was lifted onto the column, then a 3mm thick copper thick dish was made and fitted at the base of the globe. The globe was now secured to the column. Now to do a test run with the copper Lillie leaves, looked good so carried on and fitted the remainder - happy with them.

0n8743

"Now they had to all come off and be patinated and sealed. Next stage was to complete cancel holders that had a few stages to go through where they were silver soldered together. Strengthening washers were cut out and silver soldered to the underside of the small copper dishes, this was to allow the swaged arms to be fitted to the copper. Copper lids were made so you could just see the flame.

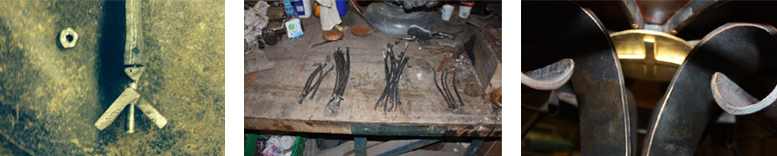

"Now all the arms had to be made at various lengths with both ends drilled and taped with small threads fitted into to allow the bowls to be fixed to the arms and to the column with some bespoke fixings. Under the top I put a surprise for the client - a small copper cross gold leafed so only the client knew it was there, you had to look for it to find it.

0n8741

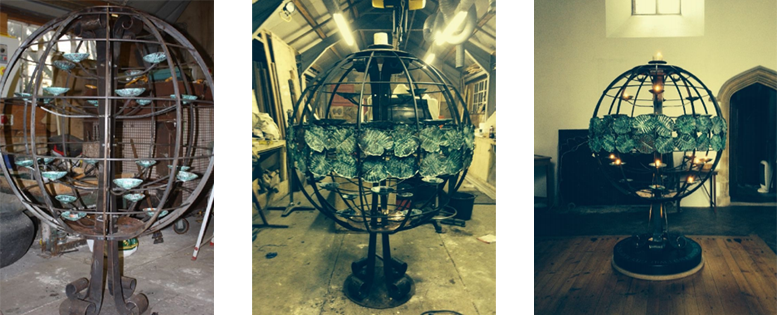

"Eventually all the copper candle holders are fitted - have to excuse the light as pictures were taken in the dark bleak mid winter with snow outside and freezing cold inside.

"Now to fit all the lilies and a candle holder on top to take a large candle. My part is all done and now it just needs the stone base and wood base fitted."

0n8740

To find out more about Brian and his hard and soft metal skills visit www.turners-lead-collection.co.uk
